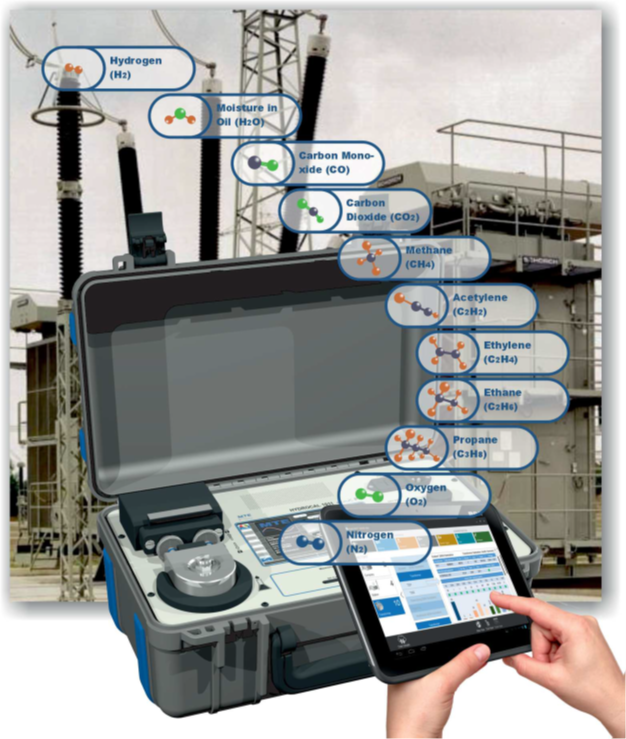

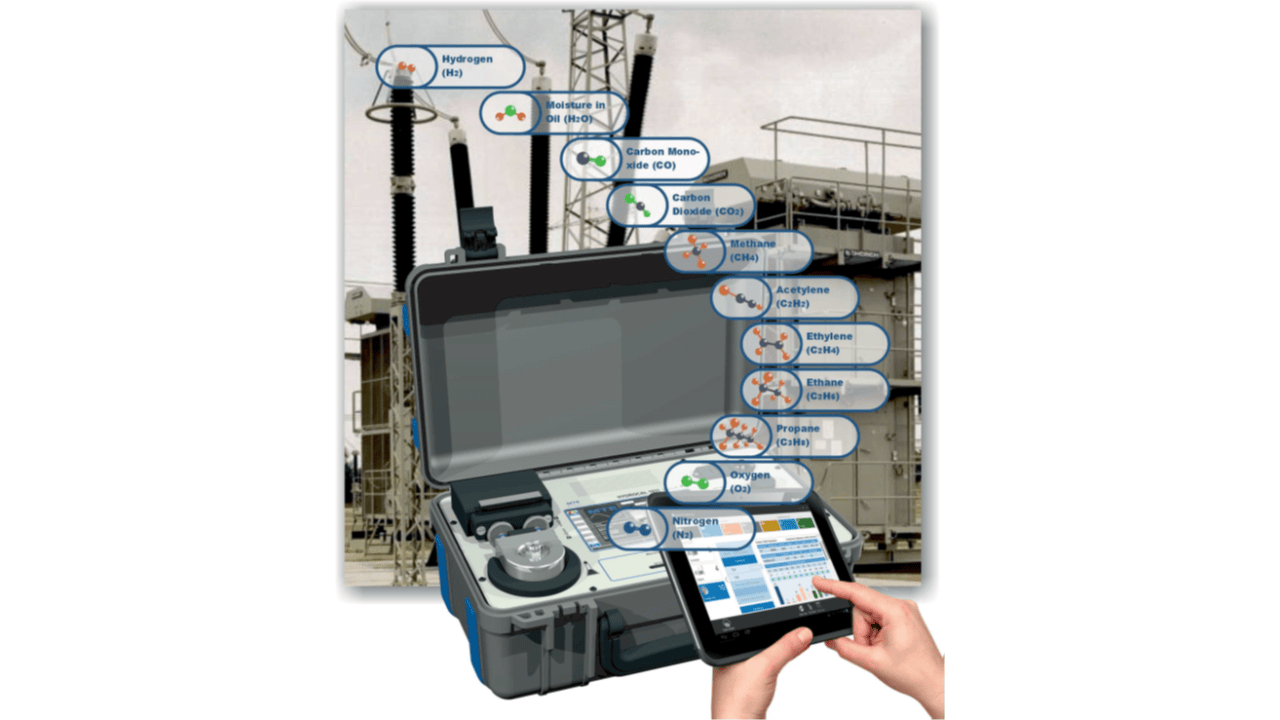

The HYDROCAL 1011 genX P is a portable device for the analysis of dissolved and free gases from the insulation fluid of oil-filled power transformers and other electrical equipment.
The HYDROCAL 1011 genX P individually measures Moisture in Oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6), Oxygen (O2), Nitrogen (N2) and Propane (C3H8) dissolved in transformer oil.
Key advantages: Maintenance-free near infrared measurement system with head-space gas extraction acc. IEC 60567 / Operation by integrated 7” color TFT (800x480 pixel) touch-screen or via genX webserver from any smart phone, notepad or PC / Communication interfaces WiFi, USB or ETHERNET 10/100 Mbit/s / SD memory of test results, history and diagnostic data of power transformers and oilfilled electrical equipment / Integrated thermal report printer
