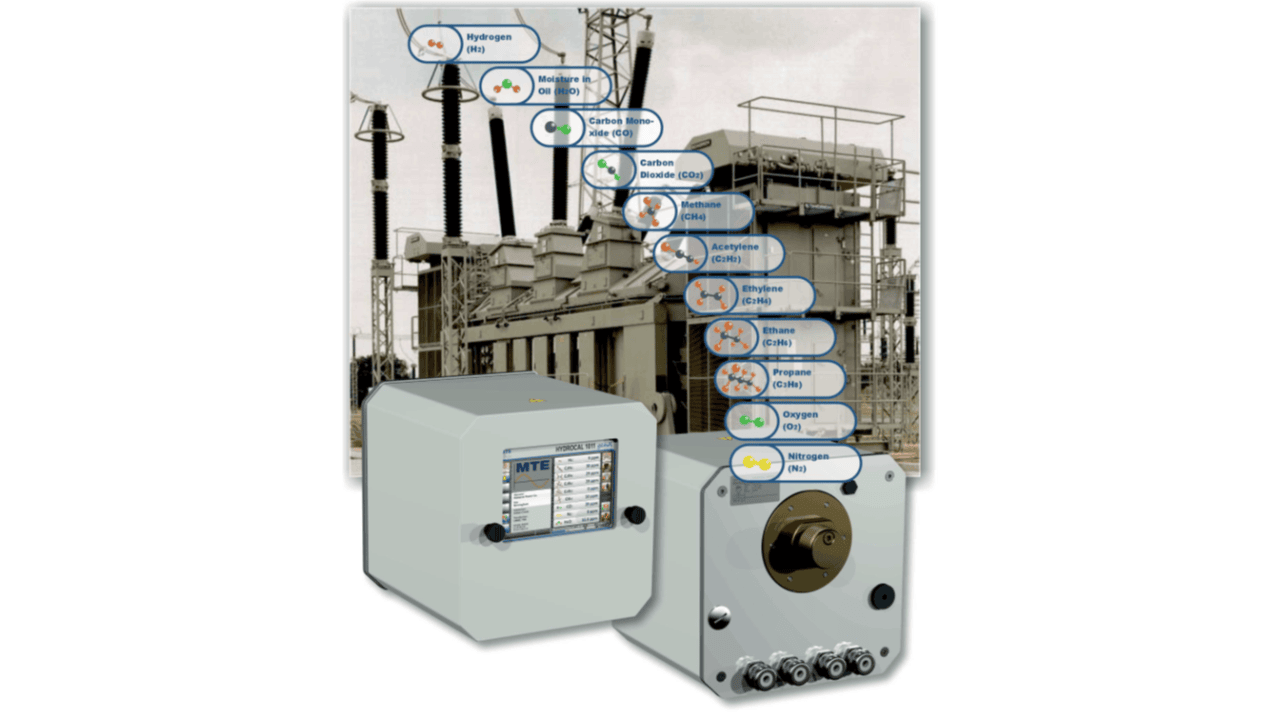

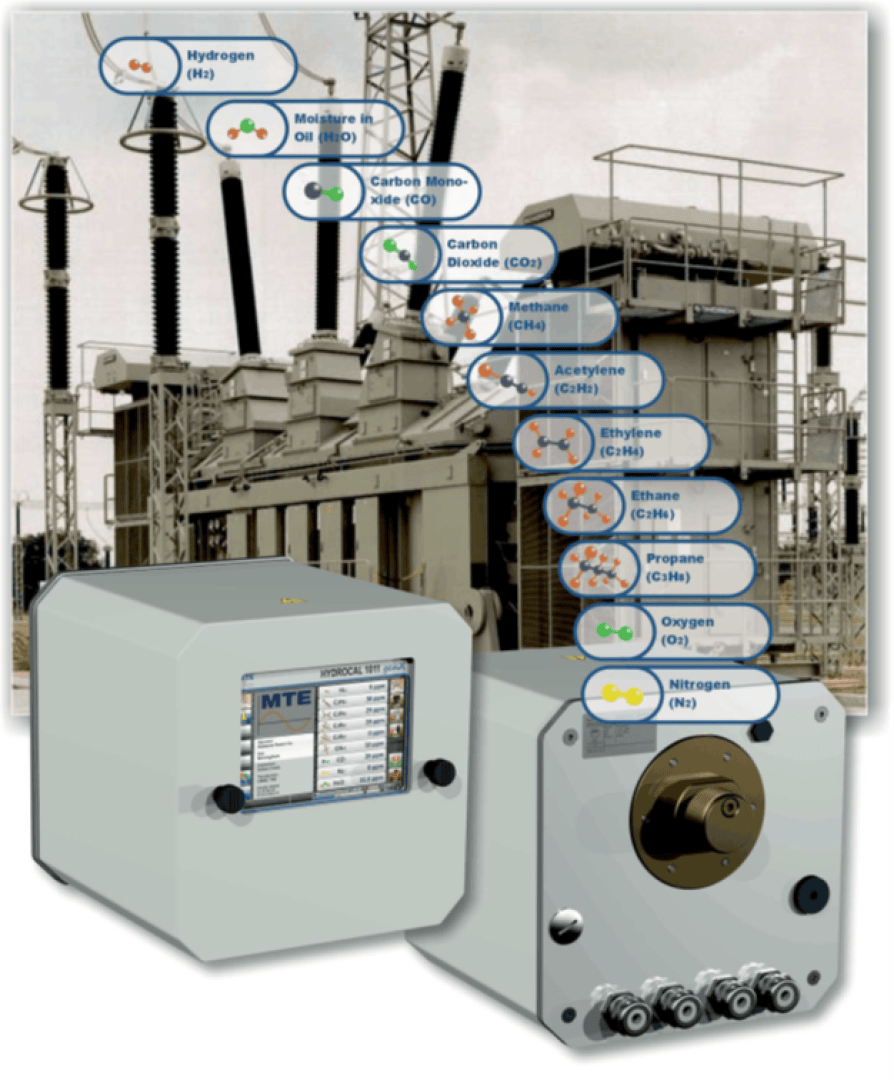

The new HYDROCAL 1011 genX is a full-range / maintenance-free multi-gas online DGA solution combining proven near infrared (NIR) measuring technology with miniaturized gas sample production based on headspace principle (no membrane, negative pressure proofed).
The new HYDROCAL 1011 genX individually measures Moisture in oil (H2O) and the key gases Hydrogen (H2), Carbon Monoxide (CO), Carbon Dioxide (CO2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6), Oxygen (O2), Nitrogen (N2) and Propane (C3H8) dissolved in transformer oil.
Key advantages: Moisture in Oil (H O) measurement / Easy to mount on the operating transformer without any operational interruption / Advanced software (on the unit and via PC) with intuitive operation by 7" color TFT capacitive touchscreen, WLAN and Webserver operation from any smart phone, tablet or notebook PC / ETHERNET and RS 485 interfaces to support MODBUS RTU/ASCII, MODBUS TCP, DNP3 proprietary communication and IEC 61850 protocols
